BEST & Innovative Gear Maker
| Gear Machining | Module | Workpiece Dia. | Face Width | Gear Grade |
|---|---|---|---|---|
| 7 CNC Grinding Machine | Max. 60 | ~ Ø 300” (7,400 mm) | Max. 63” (1,600 mm) | DIN Class 1 |

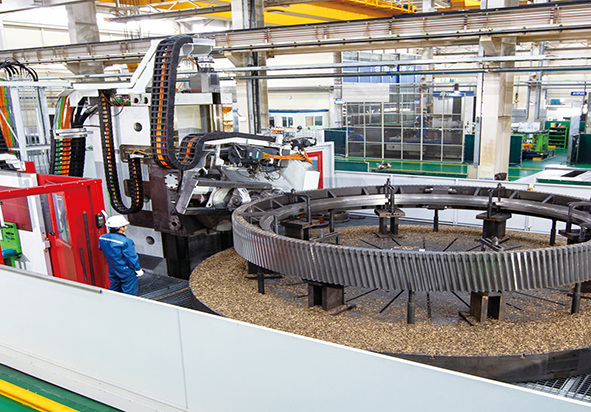

| 3 CNC Hobbing Machine | Max. 60 | ~ Ø 330” (8,000 mm) | Max. 79” (2,000 mm) | DIN Class 1 |
| Other Process | Turning and Milling | Boring | 5-phase Milling |
|---|---|---|---|
| Capacity | Ø 217” (5,500 mm) | 10M X 4.5M (45 Ton) | 4.2M X 3.2M (20 Ton) |
| Equipment | Capacity | Description | Gear Grade |
|---|---|---|---|
| Gear Grinding Machine | Module 0.5 ~ 20 | Gear accuracy improvement and profile modification | DIN Class 1 |
| Cylindrical & Eccentric Grinding Machine | Max. 300 mm | Precision cylindrical grinding and eccentric grinding | |
| Boring & Honing M/C | Max. 800 mm | Precision hole machining (5 micron) |
| General Machining | CNC Lathe | Vertical | 8” ~ 21” |
|---|---|---|---|
| Horizontal | 8” ~ 21” | ||
| Machining Center |
Vertical | 600~2,000 x 500~900 x 500~700 (mm) | |
| Horizontal | 600~2,000 x 500~900 x 500~700 (mm) | ||
| Gear Machining | Gear Shaper | M6~M22 x Ø 400~Ø 1,000 mm | |
| Gear Hobbing | M8~M8 x Ø 350~Ø 1,260 mm | ||
| Gear Shaving / Honing | M6~M8 x Ø 320 x 150T | ||
| Heat Treatment | Induction Hardening | 1000kw x Ø 500 mm, 1~3kHz | |
| Tempering Furnace | 250℃ | ||
| Shot Peening | Ø 500 mm | ||

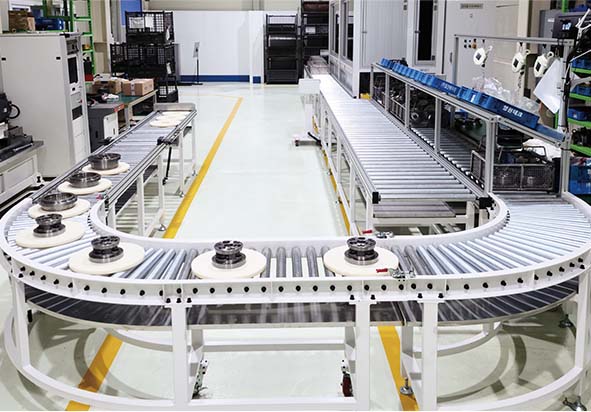

| Assembly | Tunnel Type Cleaning Machine | Planetary Gearbox 100,000 Set / Year | |

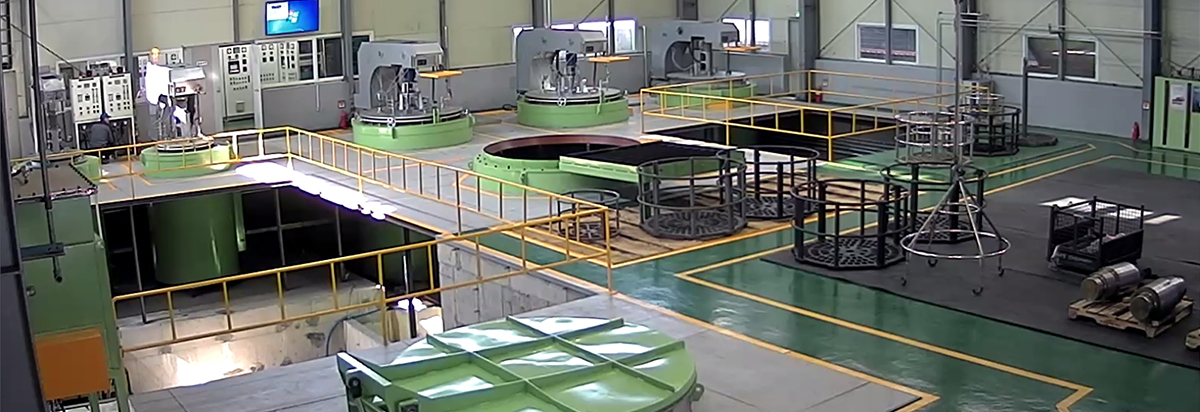

| Carburizing Furnace | Pit Type Furnace | Ø 900 X 1750(mm) | 2 Q'ty |
|---|---|---|---|
| Ø 1600 X 2500(mm) | 3 Q'ty | ||
| Ø 2000 X 5000(mm) | 1 Q'ty | ||
| Car Type Furnace | 3000 x 2000 x 5000(mm) | 1 Q'ty |
| Tempering Furnace | Ø 1600 X 2500(mm) | 1 Q'ty |
|---|---|---|
| Ø 900 X 1750(mm) | 1 Q'ty | |
| 3000 x 2000 x 5000(mm)(Car Type Furnace) | 1 Q'ty | |
| Nitrocarburizing Furnace | Ø 900 X 1100(mm) | 1 Q'ty |
| Oil Bath | 3000 X 3200(mm) | 1 Q'ty |
|---|---|---|
| Ø 3000 X 6550(mm) | 1 Q'ty |
| Induction Hardening Machine | 1,000 kw, MAX Ø 500 | 1 Q'ty |
|---|
