Heavy Machinery & Energy Industry
Woorim PTS manufactures and supplies traveling and slewing reducers forheavy construction equipment
and extra-large gears used for mining equipment and facilities.

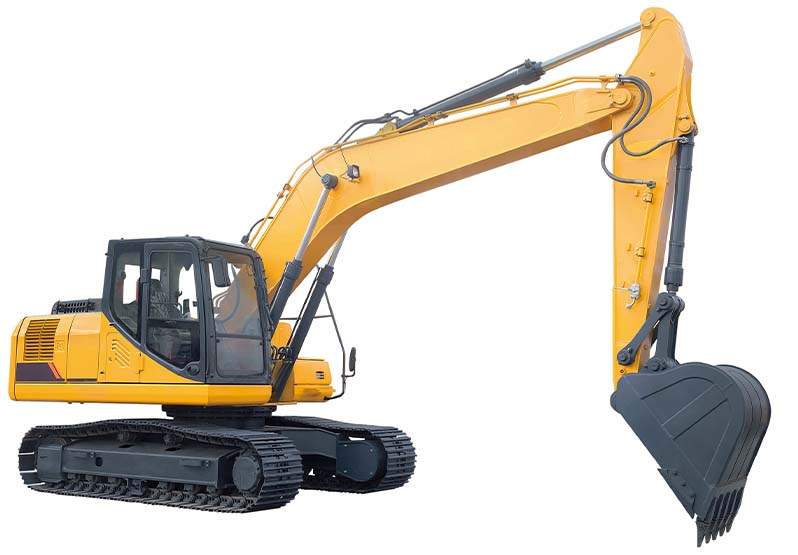

Excavator
We provide optimization solutions for various planetary gearboxes (traveling and slewing) required for excavators.
Traveling Reducer
PTO Gearbox
Slewing Reducer
Traveling Reducer
- We boast a lineup of various tonnage traveling reducers
for excavator driving unit.
Application
- Excavators
- Crawler cranes
- Crawler drill
- Crusher
- Screen
Feature
- 01
- Excellent performance under harsh conditions.
- 02
- Our products boast a long lifespan (durability).
- 03
- Product stability is verified through rigorous durability testing and field verification.
- 04
- Customer requirements are applied to our products.
| Operating Weight | Model | Gearbox | ||
|---|---|---|---|---|
| Reduction Ratio(I) | Max. Output Torque |
Max. Output Speed |
||
| Ton | - | Nㆍm | RPM | |
| 7~8 | DM09VD | 45.97 | 10,790 | 60 |
| 8~10 | TM10VD | 54.47 | 12,250 | 70 |
| 12~14 | TM18VC | 53 | 20,600 | 60 |
| 14~16 | TM22VC | 53.71 | 23,340 | 60 |
| 15~18 | TM30VD | 39.14 | 34,200 | 56 |
| 20~26 | TM40VD | 49.95 | 45,610 | 60 |
| 30~34 | TM60VD | 46.12 | 68,640 | 52 |
| 36~42 | TM70VD | 54.47 | 78,400 | 45 |
| 80 | 31ND~40070 | 120.45 | - | - |
| 150 | 150T | 300.813 | - | - |
| 250 | 250T | 453.067 | - | - |

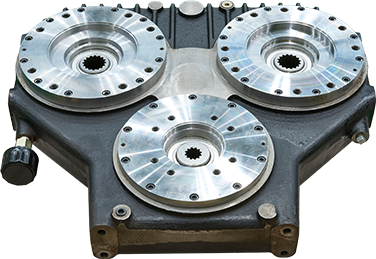

PTO Gearbox
-
This part is capable of minimizing fuel consumption by improving fuel efficiency (enables selective operation of hydraulic pumps)
of large-sized excavators, ensuring high-efficiency, eco-friendly operation.
Application
-
- Excavators
Feature
- 01
- It divides diesel engine power from single-input to three-shaft output, thereby driving three hydraulic pumps.
- 02
- Ensures bearing life of more than 20,000HR based on B10 Life
- 03
- Minimizes fuel consumption by improving fuel efficiency
- 04
- Eco-friendly, high-efficiency parts
( PTO = Power Take Off )
| Item | Application | Spec. |
|---|---|---|
| PTO Gearbox | 90 ~ 100 ton Excavator | Rated Power : 448 kW Max. Input Speed : 1,800 RPM Max. Input Torque : 2,750 Nm |
Slewing Reducer
- The slewing reducer rotates excavators 360 degrees.
Application
- Excavators
Feature
- 01
- It has compact size and delivers robust power.
- 02
- It boasts high torque capacity by optimized design.
- 03
- Product stability verified through rigorous durability testing and field verification.
- 04
- It features long bearing life, high driving efficiency, and improved cornering.
| Item | Application | Spec. |
|---|---|---|
| RG250 | 5 ton Slewing Device | Ratio 1/19.4 |
| RG400 | 8 ton Slewing Device |
Mining & Cement
We supply various types of gears and reducers required for mining & cement industry.

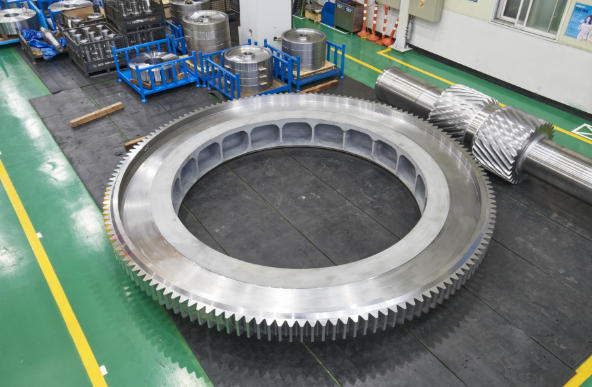

Girth Gear
Extra-large gears are used in large-scale facilities across various industries, such as cement, mining, and steel manufacturing.

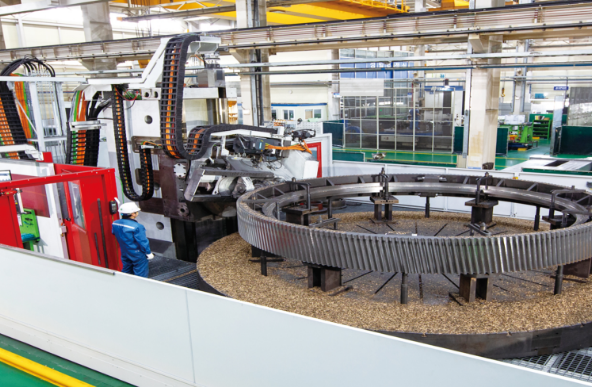

We carry out gear machining processes such as gear cutting and tooth grinding. In addition, precise gear profile data can be obtained from cutting-edge measuring equipment for large gears with a diameter of 8M or more.

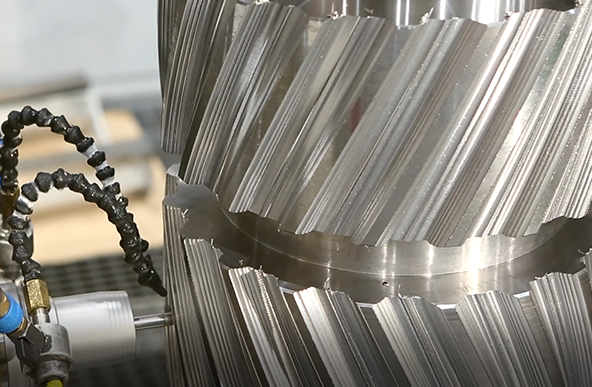

Herringbone Gear
It is a special gear with a very narrow gap in the middle of the double helical gear. Herringbone shapes up to Gap 0 mm can be machined using a special milling spindle for extra-large gears with a diameter of 8 meters or more.
Min. Gear Gap : 0 mm
Module : Min. 1~60
Diameter : Max. 8,000 mm
Swing Rack
These large gears are used in slewing systems of extra-large mining equipment. It receives power from the pinion reducer connected to the power unit and transmits power to turn the machine.
Module : Max. 60
Diameter : Max. 8,000 mm
Grade : DIN 8 Grade

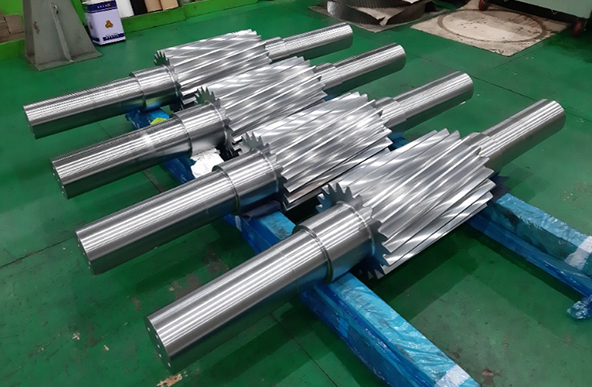

Long shaft pinion
This is a pinion consisting of a long shaft of more than 2 meters. We carry out core processes such as turning, hobbing, heat treatment, and gear grinding up to 5 meters in length.
Module : Max. 60
Diameter : Max. 2,500 mm
Grade : DIN 5 Grade

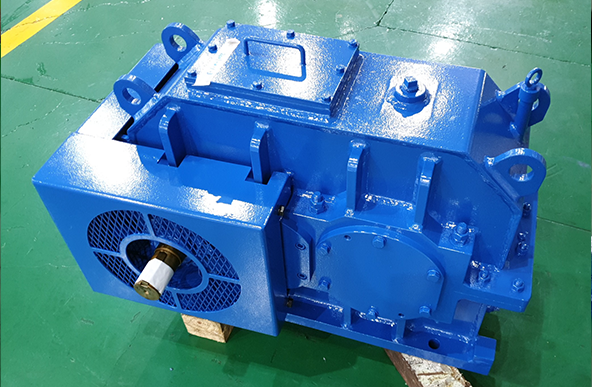

Gearbox
These reducers deliver power from a power source to large facilities such as heavy mining equipment, conveyors, and cement ball mills. We design reducers according to customer requirements, and perform deformation analysis, bearing analysis and fluid analysis. We have supplied to more than 100 sites around the world.
Supply List
| Date | Description | Specification | Q’ty |
|---|---|---|---|
| 2021 | Girth Gear | M25 x 222T x 355B (OD Ø 5,595 mm) | 2ST |
| 2019 | Girth Gear | M33.87 x 152T x 241.30B (OD Ø 5,287.59 mm) | 6ST |
| 2019 | Girth Gear | M25 x 160T x 150B (OD Ø 4,050 mm) | 3ST |
| 2018 | Girth Gear | M49 x 78T x 500B (OD Ø 3,845 mm) | 2ST |
| 2017 | Girth Gear | M27 x 164T (OD Ø 4,487 mm) | 2ST |
| 2016 | Girth Gear | M20 x 198T x 235B (OD Ø 4,016 mm) | 7ST |
| 2014 | Girth Gear | M27 x 143T (OD Ø 3,919 mm) | 2ST |
| 2013 | Girth Gear | M25 x 156T (OD Ø 3,850 mm) | 2ST |
| 2012 | Gearbox | 220 kW x 1,200 RPM x 1/35 | 10ST |
| 2009 | Gearbox | 22 kW x 6P x 1/120 | 22ST |
Electrical System

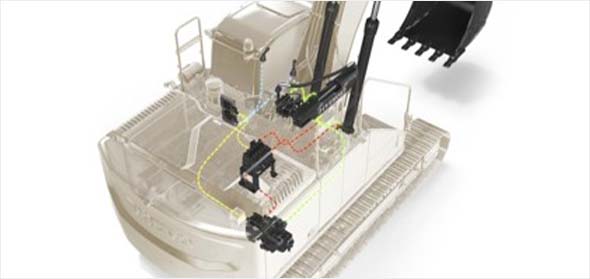

We provide optimization solutions for various gearboxes in electrical heavy construction equipment and commercial vehicles. (traveling reducer, E-PTO)

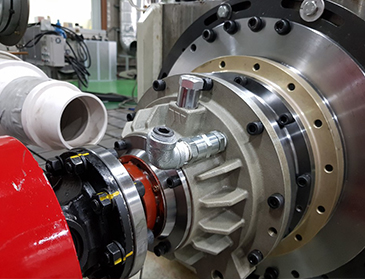

Electric Traction System

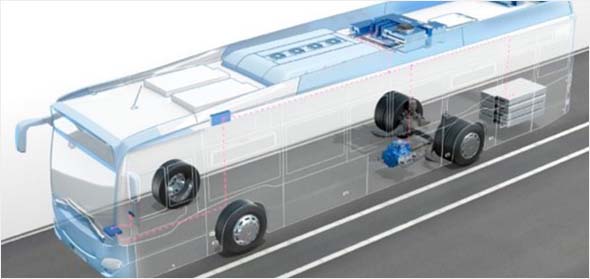

- Application Electric Excavator & Bus
- Capacity 120kW x 10,000 RPM
Hybrid Traction System
It has built-in brakes of compact size. Applied to various heavy construction equipment,
it converts high-speed, low-torque motor power into low-speed, high-torque with high efficiency and high driving torque.
- Application Hybrid Wheel Loader
- Capacity 120 kW x 8,000 RPM

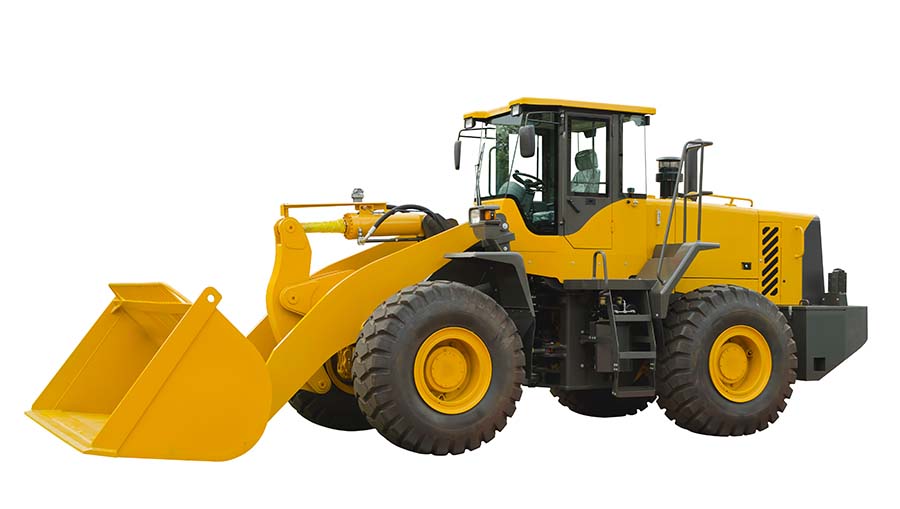

- Hybrid Wheel Loader In-wheel Drive
| Motor Power | Max. Traction Torque | Max. Input Shaft Speed | Reduction Ratio | Weight (Estimate) |
|---|---|---|---|---|
| 120 kW | 112,570 Nm | 8000 RPM | 1 / 75.4 | 720 kg |
