Heavy Machinery & Energy Industry
Offshore
We supply reducers for various offshore and port equipment customized for high-efficiency, high-rigidity, and high-accuracy products.

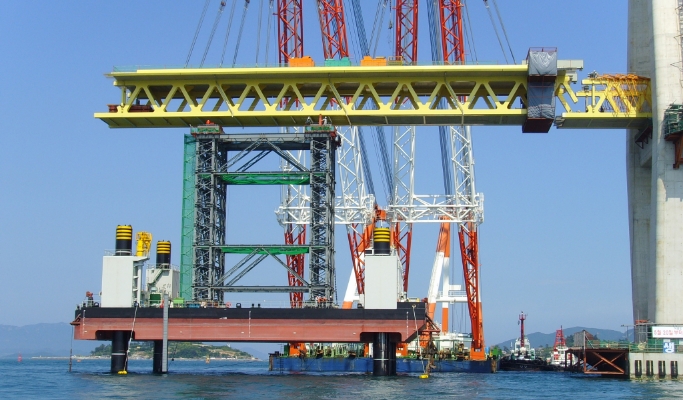

Jack-up Gearbox
Jack-up barges are used for underwater work (construction, drilling, ship building), and gearboxes lift barge above sea level. As a gearbox must support the heavy load of the barge, it must be reliable and highly rigid.
-
- Application : Jack-up barges
- Capacity : 3,200 ~ 14,000 Ton (Leg)
| Capacity | Spec. |
|---|---|
| 3,200 | 9.52kW x 120 RPM x 1/100 |
| 4,800 | 13.18kW x 96 RPM x 1/100 |
| 6,000 | 10.45kW x 96 RPM x 1/131 |
| 14,000 | 21.77kW x 114 RPM x 1/390 |

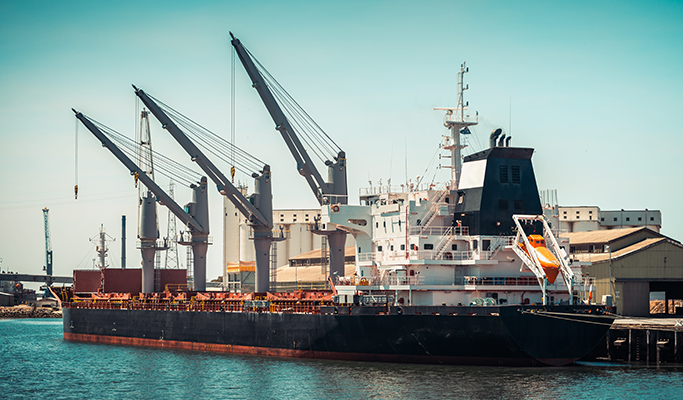

Deck Crane Gearbox
We design and manufacture main and slewing reducers for deck cranes, which are essential devices for loading and unloading at ports. We also have a range of business performance.
-
- Application : Deck Crane Gearbox ( Main & Slewing )
- Capacity : 30 ~ 40 Ton
| Capacity | Spec. |
|---|---|
| 30 Ton / 24M | 41kW x 109 RPM x 1/12.9 |
| 30 Ton / 26M | 32.6kW x 91.2 RPM x 1/14.7 |
| 30 Ton / 28M | 33.8kW x 91 RPM x 1/15.6 |
| 30 Ton / 30M | 30.6kW x 91.1 RPM x 1/16.7 |
| 40 Ton / 24M | 32.26kW x 349 RPM x 1/72.5 |
| 40 Ton / 28M | 13.53kW x 432.9 RPM x 1/139 |
| 40 Ton / 32M | 13.63kW x 440 RPM x 1/186.43 |
| 36 Ton / 30M | 358kW x 1948 RPM x 1/56.79 |
| 40 Ton / 30M | 288kW x 1640 RPM x 1/64.84 |
